Underground Downspouts & Sump Pump Drainage

The water hits the ground and soaks in. In clay soil, it doesn't drain away quickly. It spreads laterally. Some of it ends up right back against the foundation. Some of it migrates toward your patio or deck footings. All of it contributes to the saturated conditions that cause frost heave.

Sump pump discharge is often worse. The pump pushes water out through a pipe that typically exits at the side of the house. In winter, that discharge point can ice up. In summer, it creates a perpetually wet strip along your foundation. If the yard slopes toward the backyard, all that pumped water ends up in exactly the area you're trying to keep dry.

Surface discharge also creates visible problems. Splash erosion under downspouts. Muddy channels where sump water runs. Grass that won't grow in the constantly wet strip.

Taking Water Underground

Underground downspout systems capture roof water before it hits the ground and move it through buried pipe to a discharge point away from the problem areas.

The typical setup includes:

Catch basins below each downspout. These collect water from the gutter and direct it into underground pipe. They also catch debris, so leaves and shingle grit don't clog the system.

Solid PVC or corrugated pipe. The pipe runs underground from the catch basin to the outlet location. Solid pipe is better for long runs because it doesn't collect sediment the way corrugated pipe can.

A discharge point at lower elevation. The water has to go somewhere. Ideally, that's a spot far from the house where it can daylight onto a slope or into a drainage area. If the yard is flat, other options include dry wells, pop-up emitters, or connection to a larger drainage system.

For sump pump discharge, the approach is similar. The pump's discharge pipe connects to an underground line that carries water to the same outlet as the downspouts. This eliminates the surface discharge, the ice buildup in winter, and the wet channel along the foundation.



Connecting Everything Together

The real power of underground drainage comes from integration. Instead of separate systems for downspouts, sump pump, and French drains, you connect everything into one network that shares a common outlet.

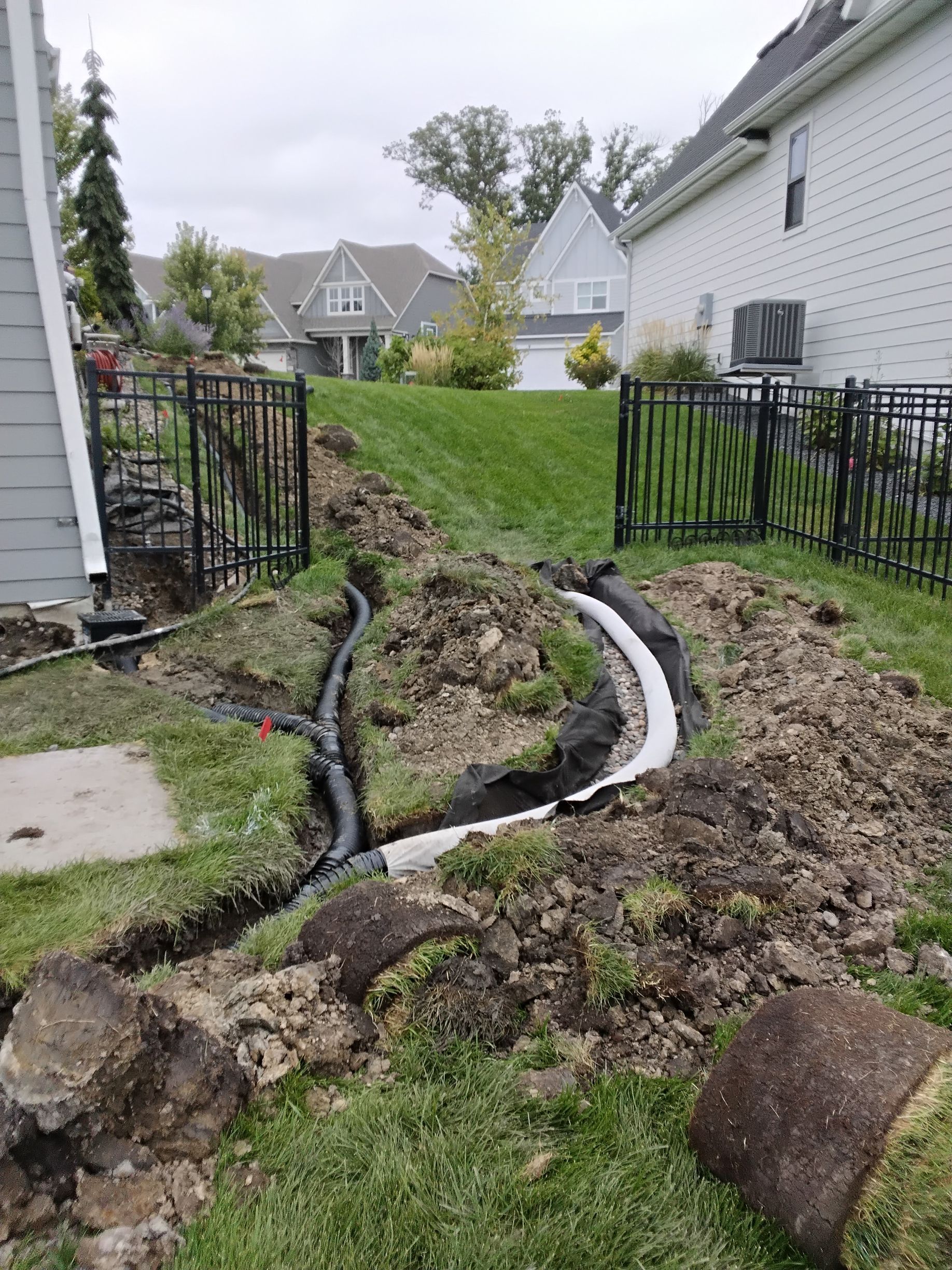

We did exactly this on a Plymouth project in the Enclave at Elm Creek where the homeowner was dealing with a saturated backyard, frost heave damage, and a sump pump that ran constantly.



The system included:

• French drains along the foundation and around the patio perimeter
• Underground downspouts from every gutter on the back and side of the house
• Sump pump discharge tied into the main drain line
• A downspout at the front corner of the house that had been draining toward the backyard, also captured and sent underground

Everything flows to a 4-inch main line that runs to the back of the property and discharges at the lowest point. One outlet handles all the water. No more roof runoff soaking into the clay near the foundation. No more sump water running down the side yard into the backyard. No more saturated soil under the patio.

The sump pump still runs, but the water it discharges leaves the property instead of cycling back into the soil. The French drains keep the soil around the patio and footings dry. The underground downspouts keep roof water out of the equation entirely.

Why Integration Matters

Fixing one water source while ignoring others is how drainage projects fail.

We see it regularly. A homeowner installs French drains to fix a wet backyard, but the downspouts are still dumping hundreds of gallons next to the foundation every time it rains. The French drains help, but the yard stays wetter than it should because new water keeps getting added.

Or they run the sump pump discharge underground, but it outlets into a low spot in the backyard that has no drainage. Now all that water is concentrated in one area instead of spread along the side of the house. Different problem, same result.

The question to ask is: where is the water coming from, and where is it going?

If you're getting water from multiple sources (roof, sump pump, surface runoff, neighbor's property) you need a system that handles all of them. Tying everything together means one installation, one outlet, and no gaps where water can sneak through and cause problems.

What to Consider for Your Property

Where do your downspouts currently discharge?

Walk around during a rain and watch where the water goes. If it's pooling near the foundation, running toward the patio, or creating wet spots in the lawn, those downspouts need to be rerouted underground.

How often does your sump pump run?

A pump that runs frequently is moving a lot of water. If that water is discharging at the surface and draining toward your backyard, it's contributing to saturation. Tying the sump discharge into an underground system keeps that water from coming back.

Do you have slope to work with?

Underground drainage needs to flow downhill. If your yard has a lower area where water can outlet, that's your discharge point. If the yard is flat, you may need a dry well or pop-up emitter. On properties where nowhere is truly lower, an outdoor sump pump system can push water out.

Are you already planning French drains?

If you're addressing wet soil around your foundation or patio, add the downspouts and sump pump to the project. Running one set of trenches and connecting everything to one main line is far more efficient than doing separate projects later.

The Result of Getting It Right

When underground downspouts, sump pump discharge, and French drains all work together, the change is dramatic.

The Plymouth homeowner whose project we've been describing had a backyard that stayed muddy for days after every rain. The patio was heaving into the siding. Catch basins from a previous attempt at drainage were popping out of the ground. The sump pump ran almost constantly.

After the comprehensive system went in, the backyard drains like the front yard. The soil around the patio and deck footings stays dry. The sump pump still runs, but the water actually leaves the property. The frost heave damage has stopped because there's nothing left to heave.

That's what managing your water sources gets you. Not a partial fix. A complete one.

Frequently Asked Questions

Can I connect my sump pump to my underground downspout system?

Yes, and it's usually a good idea. The sump pump discharge can tie into the same main line that handles your downspouts. This consolidates everything into one system with one outlet. Just make sure the pipe is sized to handle the combined flow, and include an air gap or relief point in case the underground system ever backs up.

What happens to underground downspouts in winter?

Underground pipes can freeze if water sits in them. Good design minimizes this risk by maintaining proper slope so water doesn't pool, and by disconnecting the system during deep winter when the gutters aren't flowing anyway. Some homeowners install heat cables in problem areas. The bigger concern is ice at the discharge point, which is why outlets should be at a low spot where water can exit freely.

How far from the house should the discharge point be?

At least 10 to 15 feet, and ideally further. The goal is to get water far enough away that it can't migrate back through the soil toward your foundation. On large properties, we often run the main line 30 or 40 feet to a suitable outlet. The right distance depends on your lot's topography and where water naturally wants to go.

Do I need a catch basin below every downspout?

Not necessarily, but it's usually the best approach. Catch basins collect debris and provide an access point for maintenance. For downspouts in tight spots, there are inline adapters that connect directly to the underground pipe. The right choice depends on the situation.

What size pipe should I use for underground drainage?

4-inch solid PVC is standard for most residential applications. It handles the flow from multiple downspouts and sump pumps without backing up. For longer runs or systems collecting a lot of water, we sometimes upsize to 6-inch pipe for the main line. Corrugated pipe is cheaper but more prone to clogging and sagging over time.

Ready to Stop Fighting Water?

If your Plymouth yard stays wet despite your best efforts, look at the big picture. The water is coming from somewhere. Downspouts, sump pump discharge, surface runoff. Until you manage all the sources, you're fighting uphill.

We design drainage systems that tie everything together. One project, one system, one solution that actually works. Contact us to evaluate your property and see what a comprehensive approach would look like.
